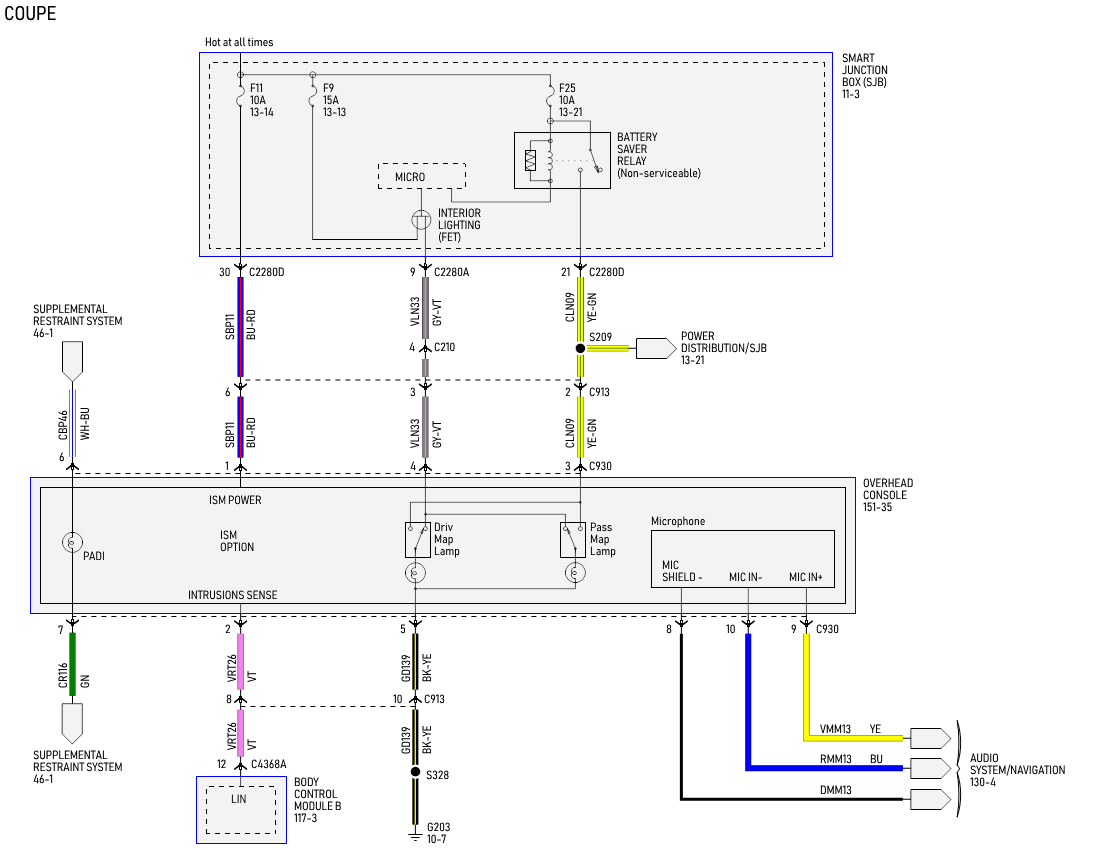

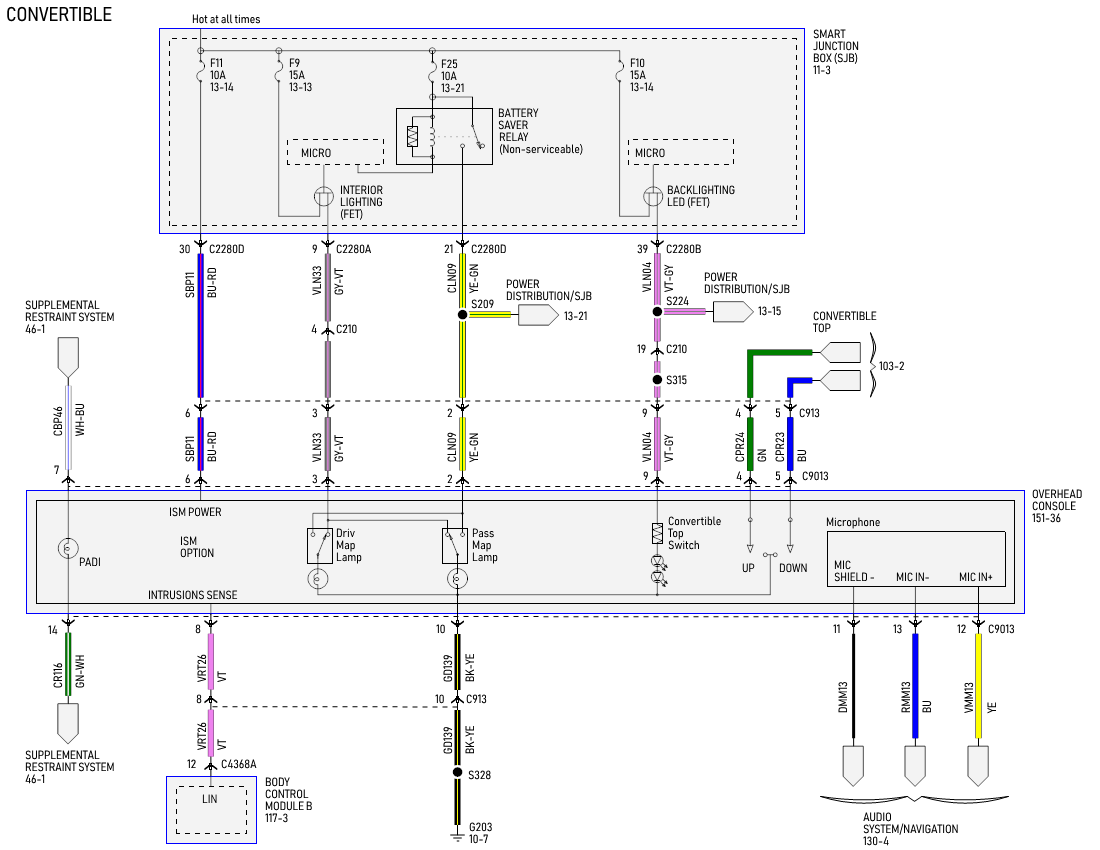

Overhead Console
| Connector # | Location | Location Diagram | Pinout |
|---|---|---|---|
| C4368A | in luggage compartment, RH side | Show/Hide EEB151028 | Show/Hide eebcfc4368a |
| C2280D | in RH front footwell, behind trim panel | Show/Hide EEB151024 | Show/Hide eebcfc2280d |
| C2280A | behind dash panel, RH side | Show/Hide EEB151017 | Show/Hide eebcfc2280a |
| C930 | in roof panel, front, center | Show/Hide EEB151035 | Show/Hide eebcfc930 |
| C913 | RH A-pillar | Show/Hide EEB151025 | Show/Hide eebcfc913 |
| C210 | in RH front footwell, behind trim panel | Show/Hide EEB151018 | Show/Hide eebcfc210 |
| Splice # | Location | Zone | Location Diagram |
|---|---|---|---|
| S328 | Wiring harness - Body main (14A005) near T/O to C919 | B4 | Show/Hide EEB151025 |
| S209 | Wiring harness - Body main (14A005) near T/O to C2280C | E1 | Show/Hide EEB151024 |
| Ground # | Location | Zone | Location Diagram |
|---|---|---|---|
| G203 | in footwell, in front of RH A-pillar, behind trim panel | C5 | Show/Hide EEB151025 |
| Fuse # |
|---|
| F25 |
| F11 |
| F9 |
Overhead Console
| Connector # | Location | Location Diagram | Pinout |
|---|---|---|---|
| C9013 | in roof panel, front, center | Show/Hide EEB151036 | Show/Hide eebcfc9013 |
| C4368A | in luggage compartment, RH side | Show/Hide EEB151028 | Show/Hide eebcfc4368a |
| C2280D | in RH front footwell, behind trim panel | Show/Hide EEB151024 | Show/Hide eebcfc2280d |
| C2280B | behind dash panel, RH side | Show/Hide EEB151017 | Show/Hide eebcfc2280b |
| C2280A | behind dash panel, RH side | Show/Hide EEB151017 | Show/Hide eebcfc2280a |
| C913 | RH A-pillar | Show/Hide EEB151025 | Show/Hide eebcfc913 |
| C210 | in RH front footwell, behind trim panel | Show/Hide EEB151018 | Show/Hide eebcfc210 |
| Splice # | Location | Zone | Location Diagram |
|---|---|---|---|
| S209 | Wiring harness - Body main (14A005) near T/O to C2280C | E1 | Show/Hide EEB151024 |
| S328 | Wiring harness - Body main (14A005) near T/O to C919 | B4 | Show/Hide EEB151025 |
| S224 | Wiring harness - Body main (14A005) near T/O to C306 | E1 | Show/Hide EEB151024 |
| S315 | Wiring harness - Body main (14A005) near T/O to C306 | A3 | Show/Hide EEB151024 |
| Ground # | Location | Zone | Location Diagram |
|---|---|---|---|
| G203 | in footwell, in front of RH A-pillar, behind trim panel | C5 | Show/Hide EEB151025 |
| Fuse # |
|---|
| F25 |
| F11 |
| F10 |
| F9 |
