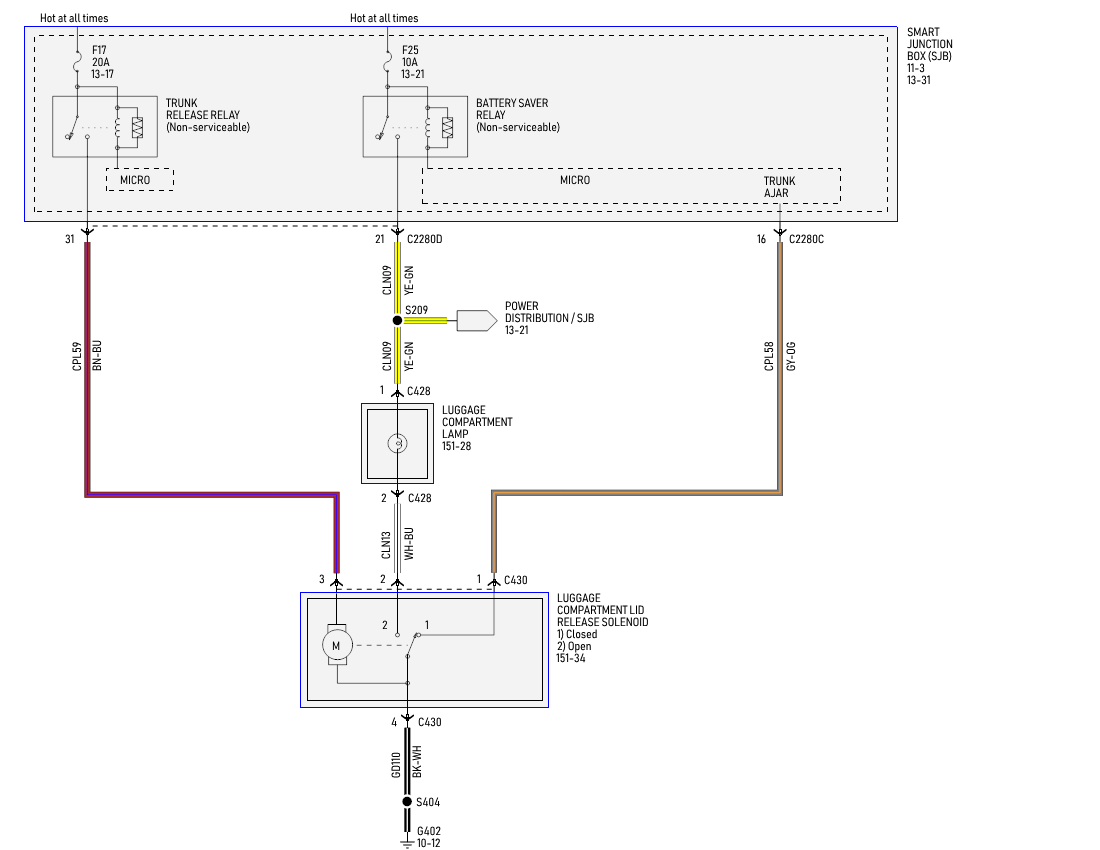

Luggage Compartment
| Connector # | Location | Location Diagram | Pinout |
|---|---|---|---|
| C430 | Rear of vehicle, luggage compartment lid | Show/Hide EEB151034 | Show/Hide eebcfc430 |
| C2280D | in RH front footwell, behind trim panel | Show/Hide EEB151024 | Show/Hide eebcfc2280d |
| C2280C | in RH front footwell, behind trim panel | Show/Hide EEB151024 | Show/Hide eebcfc2280c |
| C428 | in luggage compartment, rear center | Show/Hide EEB151028 | Show/Hide eebcfc428 |
| Splice # | Location | Zone | Location Diagram |
|---|---|---|---|
| S209 | Wiring harness - Body main (14A005) near T/O to C2280C | E1 | Show/Hide EEB151024 |
| S404 | Wiring harness - Body main (14A005) near T/O to C4368B | B1 | Show/Hide EEB151028 |
| Ground # | Location | Zone | Location Diagram |
|---|---|---|---|
| G402 | in luggage compartment, rear center | C8 | Show/Hide EEB151028 |

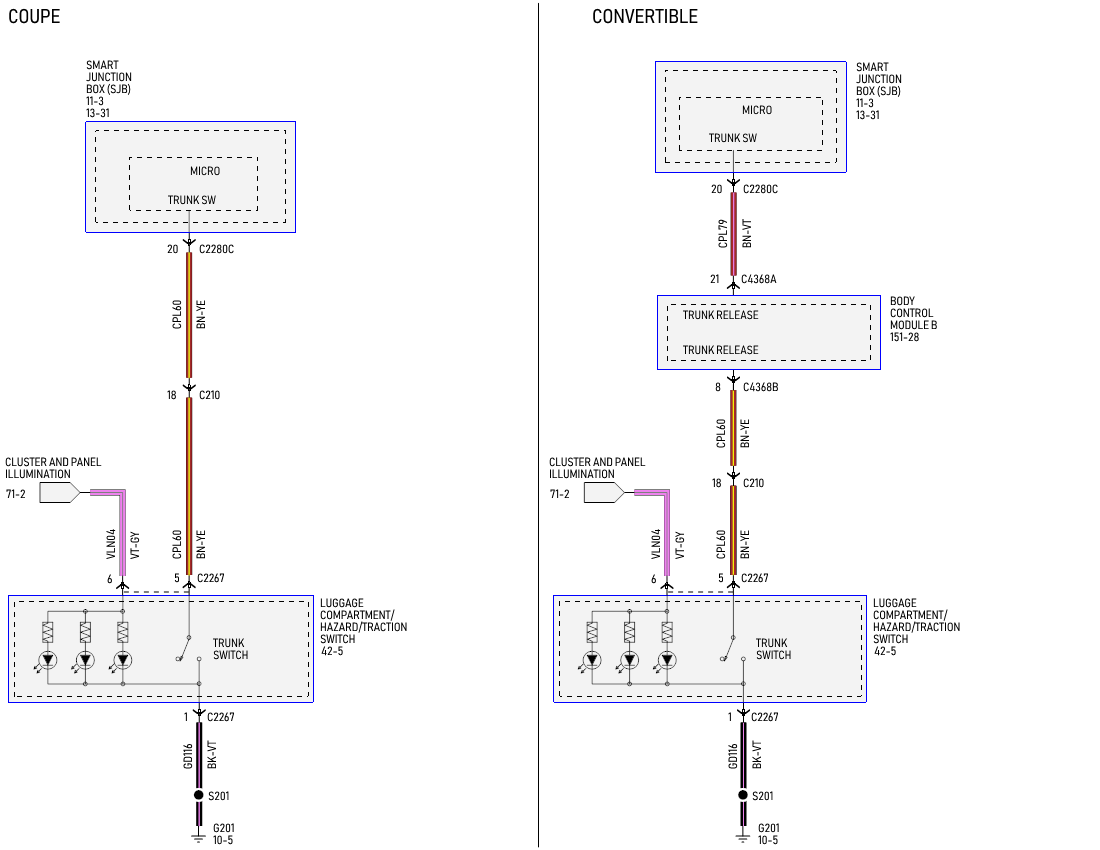

Luggage Compartment
| Connector # | Location | Location Diagram | Pinout |
|---|---|---|---|
| C4368B | in luggage compartment, RH side | Show/Hide EEB151028 | Show/Hide eebcfc4368b |
| C4368A | in luggage compartment, RH side | Show/Hide EEB151028 | Show/Hide eebcfc4368a |
| C2267 | under dash panel, center | Show/Hide EEB151016 | Show/Hide eebcfc2267 |
| C2280C | in RH front footwell, behind trim panel | Show/Hide EEB151024 | Show/Hide eebcfc2280c |
| C210 | in RH front footwell, behind trim panel | Show/Hide EEB151018 | Show/Hide eebcfc210 |
| Splice # | Location | Zone | Location Diagram |
|---|---|---|---|
| S201 | Wiring harness - Main (14401) near T/O to C248 | E4 | Show/Hide EEB151018 |
| Ground # | Location | Zone | Location Diagram |
|---|---|---|---|
| G201 | behind dash panel, RH side | B2 | Show/Hide EEB151018 |
